Mobile Station
Metered Pump
Containerized / Standalone
Many Configurations

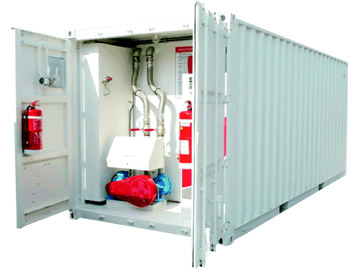

Manufactured with high quality and detail in mind, the Mobile Station is a containerized all in one rapid response system. Custom configurations are available; the need of the customer is our highest priority. These units come in 10ft, 20ft, 30ft, and 40ft containers. The manufacturing process takes place under the ISO 9001:2000 Quality Management System to assure high quality is integrated in every unit to overcome the challenges of all types of environments. The units are easy to transport and deploy for Rapid Response, Disaster Recovery, Conflict Zones or general commercial and industrial use. Each unit can be configured to meet the client's needs, in storage, metering, fuel type, insulation, and flow rate. Delivered with your requirements in mind.
|
Typical Configuration

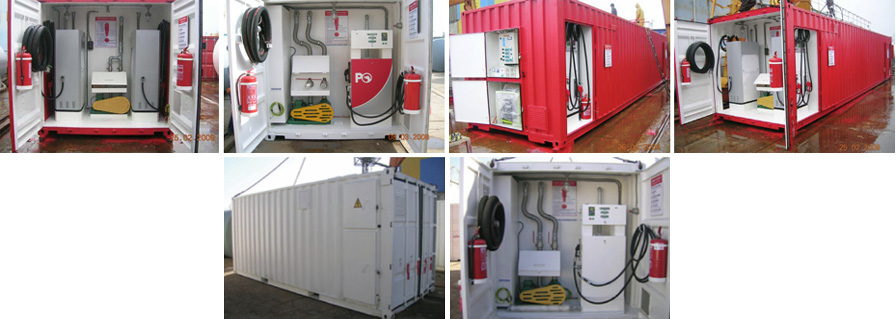

Automotive fuels such as Diesel and Gasoline can be easily loaded and dispensed with the built-in metered pump. The need to have a tanker truck waiting while fuel is being slowly dispensed is eliminated. These units can easily be deployed and loaded with fuel on-site allowing for a rapid and quick fuel station solution on the field. Spill and containment option are available to maintain a clean environment. Each unit is equipped with a prismatic and atmospheric storage tank in a rugged isolation chamber. The equipment to load and dispense fuel is housed so the equipment can be easily accessed for fuel operations and maintenance. Units are available in the following sizes:
CONTAINER DIMENSIONS (mm)
| Volume |
L |
W |
H |
STORAGE TANK |
Empty Weight |
Full Weight |
| 10 Feet |
3028 |
2438 |
2590 |
7.5 m³ |
4 tons |
11 tons |
| 20 Feet |
6058 |
2438 |
2590 |
20 m³ |
7 tons |
24 tons |
| 30 Feet |
9098 |
2438 |
2590 |
30 m³ |
9 tons |
35 tons |
| 40 Feet |
12235 |
2438 |
2590 |
40 m³ |
11 tons |
45 tons |
Use and Deployment
The Mobile Station can be quickly deployed for all types of uses where permanent fuel distribution is not available or has been disrupted by unrest, natural disasters, or breakdown. This a cost effective way to have fuel supply in multiply areas with little preparation. The Mobile Station is ideal for FOB, construction sites, mining, transportation hubs, short deployments, gas station renovations, and industrial sites. The ease of operation and quick transport gives field personnel a level of comfort that fuel is always available when they need it. As added advantage fuel transport vehicles are freed to giving mission critical operations greater flexibility.
Technical Details

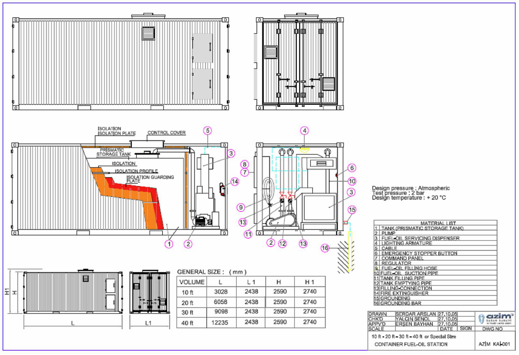

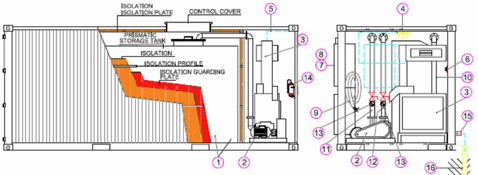

1. Prismatic fuel storage tank - 1 unit  |
2. Transfer Pump - Dual purpose pump with capacity of 30m3 /h for loading and dispensing fuel  |
3. Fuel Dispenser - Metered unit with a capacity of 5-80 l/min and automation compatible. Meter and dispenser options are available.  |
4. Lighted Equipment Area - Flame resistant Explosion-proof light housing  |
| |
|
|
|
5. Cable installation and add-ons meet required ex-proof (explosion proof) criteria for areas where the potential for flammable fumes high.  |
6. Emergency Stop - Ex-proof power switch will stop all power in case of an emergency.  |
7. Control Panel - Power distribution and control for dispenser, transfer pump and lighting system.  |
8. Regulator - This unit allows for steady power and protection from voltage variations for electronic components.  |
| |
|
|
|
13. Filling Easy Connection for fuel filling and discharge procedure.  |
14. Fire Extinguisher- (2 units) ABC dry chemical powder fire extinguisher located in equipment compartment.  |
15. Grounding Lug and Grounding rod for static electricity dampening.  |
16. Grounding Lug and Grounding rod for static electricity dampening.  |
Other Equipment
Safety Signs - Tanker discharge instructions and hazard warning signs.  |
Tool Box - for tool storage (Tools Optional)  |
|
|
